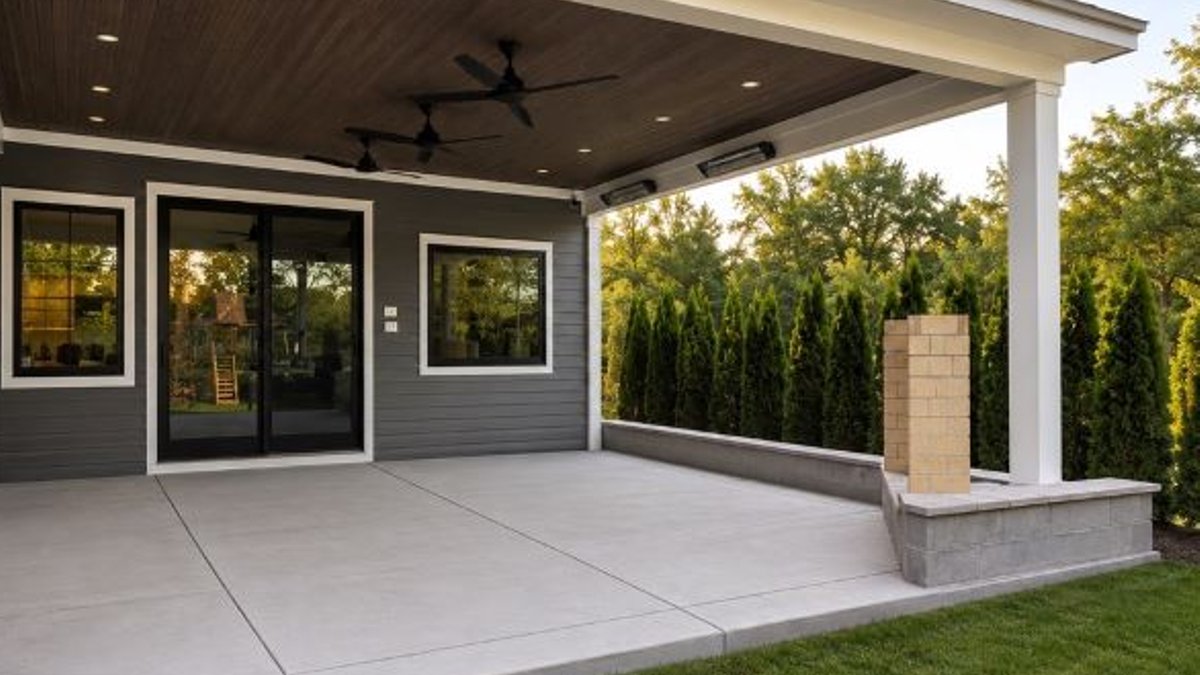

Installing porcelain tile on a concrete slab deck requires specific attention to moisture and structural movement, especially in climates with freeze-thaw cycles. When dealing with a large area like 1,100 square feet of 4” x 8” porcelain in Chicago, the decision to use a membrane depends on the existing slab conditions rather than age alone. The slab is 18 months old, which is relatively new, but that does not automatically exempt it from needing a waterproofing layer or uncoupling membrane if other factors are present.
Assessing the Slab Conditions
The project involves an exterior installation, meaning freeze-thaw conditions, moisture management, and drainage are critical. Before laying any tile, the slab must be evaluated for cracking, proper slope, and the location of existing control and construction joints. These joints must be honored through the tile assembly to prevent the tile from cracking over time.
TCNA Handbook standards suggest following the movement accommodation joint requirements outlined in TCNA EJ171. If the concrete has existing joints, they must be accommodated in the tile layout, and additional joints may be needed based on the size of the installation and the environmental exposure. If a membrane is specified for the project, the assembly must handle heavy rolling loads or concentrated point loads.
ANSI Manual guidelines indicate that not all compressible membranes are appropriate for these conditions. If a membrane is chosen, it is important to verify that the system is compatible with the intended service conditions and approved for exterior use. The design professional or building owner should coordinate with the tile, membrane, and setting material manufacturers to ensure the selected products work together in this specific environment.
Related: Registration Opens for KBIS NAHB Show
Membrane Requirements and Risks
There is no blanket industry requirement that an exterior concrete slab receive a membrane simply because it is 18 months old. However, a membrane can help manage water if the slab does not have a proper slope away from the structure.
Water allowed to collect behind the tile assembly with no drainage path may become trapped by the membrane, leading to issues. Risers also need specific detailing. Not all membranes are rated for exterior applications, so it is essential to check the manufacturer’s installation instructions for transitions at changes in plane.
Working with the technical teams at the setting material and membrane manufacturers is the safest approach. They can review the project conditions and provide a complete installation system that is appropriate for the specific application. Getting these recommendations in writing helps ensure all components are compatible and approved for the anticipated service conditions. This step provides valuable peace of mind and helps avoid potential performance issues down the road.
